How Internal Furnace Wiring Ages and Causes Irregular Heating Performance
A furnace doesn’t fail overnight. The changes usually start small. Maybe the house doesn’t heat as fast as it once did, or the air coming through the vents feels weaker than usual. Some homeowners notice a faint burning smell at startup, while others hear subtle clicking sounds that never used to happen. These issues often point to aging internal wiring, a part of the furnace that many people forget about. Wiring plays a huge role in how each component communicates, heats, starts, and shuts down. As the wiring gets older, it becomes weaker, less stable, and more reactive to temperature swings. The result is a furnace that still runs, but not in a predictable way.
Winters in Goodyear and the Greater Phoenix area may not be the coldest in the country, but the cooler days still require dependable heat. A furnace with aging wiring may run just enough to hide a serious issue, which is why many homeowners don’t recognize the problem early on. A slow decline in wiring health affects startup behavior, airflow, flame consistency, and energy use. Once you understand how wiring weakens, the signs become easier to spot before they turn into a complete shutdown.
Below, you’ll learn what aging wiring looks like inside a furnace, how it changes heating performance, what symptoms point to wiring stress, and why repairs should never wait until the system shuts itself off.
Why Furnace Wiring Ages Faster Than Expected
Wiring inside a furnace lives in a harsh environment. Every heating cycle exposes it to high temperatures, vibration, and electrical load. Even in Arizona, where heating season stays shorter, wiring still works year-round because the blower operates in both heating and cooling. That constant movement contributes to wear that isn’t visible from the outside.
The most common reasons wiring ages faster include:
- Heat exposure from burners and the heat exchanger
High heat makes insulation brittle, causing small cracks that grow with each cycle. - Vibration from the blower motor and inducer motor
Even slight vibration causes wires to rub against metal edges, weakening insulation over time. - Dust inside the furnace cabinet
Dust traps heat around the wiring and increases the chance of early breakdown. - Loose electrical connections
Heat cycles loosen screws and terminals. Loose wiring builds resistance and creates hot spots. - Moisture from condensate issues
Even small amounts of moisture can corrode terminals and weaken wire connections.
None of these problems start dramatically. They build slowly, enough to make the furnace run differently than it should but not enough to cause an obvious breakdown. That’s why wiring issues often go unnoticed until the furnace begins acting unpredictable.
How Aging Wiring Interrupts Normal Heating Behavior
As wiring weakens, it stops sending clean signals between the furnace’s core components. The thermostat, control board, ignitor, blower motor, flame sensor, and safeties all rely on stable wiring to communicate. Any interruption in that communication creates inconsistency.
Here’s how it shows up in real-world heating behavior:
Slower furnace startup
The control board needs a clean signal to begin the ignition sequence. Weak or damaged wiring makes that signal fluctuate. The furnace starts, stops, hesitates, or restarts the sequence, creating long delays before warm air reaches the ducts.
Uneven or weak airflow
Blower wiring takes heavy load. As wiring wears, the blower may run slower than intended, start late, or cycle on and off too quickly. That leads to uneven room temperatures and low airflow from the vents.
Burner misfires and irregular flames
The ignitor and gas valve depend on reliable wiring to time the ignition. A weak connection causes delayed ignitions, small booms, or inconsistent flame patterns that reduce heat output.
Short cycling
Short cycling often gets blamed on the thermostat, but wiring issues can cause the same behavior. If the control board receives unstable signals, it may shut the furnace off early or restart the heating cycle without completing the previous one.
Overheating
Loose or aging wiring increases electrical resistance. Higher resistance leads to heat buildup inside the components, pushing the limit switch to shut the system down to prevent damage.
Random shutdowns with no clear pattern
This symptom confuses many homeowners. The furnace may run fine for a few days, then shut off unexpectedly. Aging wiring responds differently to temperature changes, which creates unpredictable heating behavior.
Each of these signs points to communication problems inside the system, and wiring sits at the center of all communication.
Signs That Point to Wiring Stress Inside the Furnace
Most homeowners don’t see wiring issues because everything happens inside the cabinet. Instead, the furnace shows strange symptoms that don’t match thermostat settings. The earlier these symptoms are noticed, the easier the fix becomes.
Common signs include:
1. The furnace starts with a delay
If the system hesitates before ignition, wiring may not be sending a strong enough signal to the ignitor or gas valve.
2. The blower makes a quick surge before settling
Aging wiring sometimes sends inconsistent voltage, which causes the blower to ramp up unevenly.
3. The furnace restarts multiple times without reaching the set temperature
This often happens when the control board receives unstable wiring signals.
4. The air feels hot at first, then quickly cools
Irregular burner operation comes from weak wiring in the ignitor or flame sensor loop.
5. Burning or metallic odor at startup
Old wiring insulation warms up and releases a distinct smell. This should never be ignored.
6. Occasional flickering lights
This is a sign of high electrical draw somewhere in the home, and damaged furnace wiring can contribute.
7. Random breaker trips
Aging wires inside the furnace may create resistance that overloads the circuit.
These symptoms don’t always appear together. Sometimes only one noticeable change happens, which makes the problem easy to overlook.
Why Wiring Issues Become More Serious With Time
A furnace can run with weak wiring for months, but that doesn’t mean it’s safe. As insulation cracks, copper inside the wires becomes exposed. That exposure creates heat pockets, sparks, and direct contact with metal framing. Once the issue reaches that stage, components can fail instantly.
Here’s what aging wiring eventually leads to:
- Ignitor failure
- Blower motor burnout
- Control board damage
- Frequent limit switch trips
- Short circuits
- Complete furnace shutdown
Early repair prevents all of these expensive failures. Electrical issues rarely stay small once they begin.
Why Goodyear and the Greater Phoenix Area See More Wiring Issues
Homes in this region experience wide temperature swings between seasons. Furnaces often sit for long periods in the hotter months, but the blower keeps running during air conditioning season. That constant run time creates vibration, which speeds up wiring wear. Dust also plays a major role in wiring decline here. Desert dust collects inside the furnace cabinet and sticks to wiring insulation. Dust holds heat, which weakens the insulation even faster.
Many older homes in the area also have aging ductwork that uses the same system year after year. Higher static pressure inside older duct systems forces the blower to work harder, which increases electrical load on blower wiring.
These factors make routine inspections especially important for preventing heating problems.

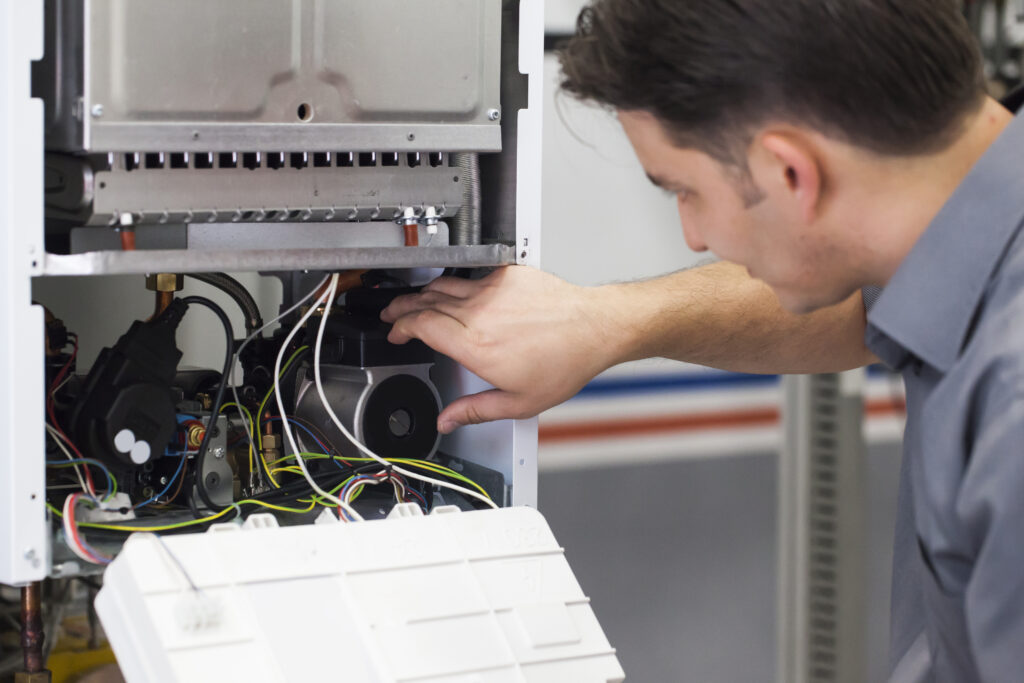

How Technicians Repair Aging Wiring Safely
A professional technician can track wiring issues through a series of inspections and voltage tests. Repair methods include:
- Replacing damaged wires and connectors
- Tightening loose terminals
- Removing dust buildup inside the cabinet
- Securing wiring away from vibrating components
- Checking voltage stability during startup
- Inspecting control board pathways
These repairs restore stable communication inside the furnace and strengthen the heating cycle from start to finish.
FAQs About Furnace Wiring Issues in Goodyear and the Greater Phoenix Area
Why does my furnace take longer to heat than it used to?
A slow startup usually points to weak wiring that delays signals between the thermostat, control board, and ignitor.
Why does my furnace smell slightly burnt at startup?
A faint burnt smell often comes from old insulation on wiring that warms up during the first few minutes of heating.
Can wiring issues make the furnace shut off unexpectedly?
Yes. Faulty wiring disrupts signals and causes the control board to shut the furnace down mid-cycle.
Why does the blower run unevenly or sound louder than before?
Wiring that can’t deliver steady voltage causes the blower to surge or slow unpredictably.
Do desert dust conditions in this area affect wiring inside the furnace?
Dust holds heat and speeds up insulation wear, which makes wiring issues more common in Goodyear and the Greater Phoenix area.
